With their unique design and innovative features, ATEN Desktop KVM Switches provide both ergonomic style and advanced functionality for the SOHO desktop environment.
CS1922- 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers.
CS1924- 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
The ATEN CS1924 4-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. \
CS782DP- 2-Port USB DisplayPort/Audio KVM Switch (4K UHD Supported)
With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.
CS72D- 2-Port USB DVI KVM Switch
The CS72D 2-Port USB DVI KVM Switch allows you to control two computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.
CS74D- 4-Port USB DVI KVM Switch
The CS74D 4-Port USB DVI KVM Switch allows you to control four computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.
CS1642A- 2-Port USB DVI Dual View KVMP™ Switch
The CS1642A 2-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 2-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
CS1644A- 4-Port USB DVI Dual View KVMP™ Switch
The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
CS1942- 2-Port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch
The CS1942 2-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch allows access to 2 computers from a single USB keyboard and USB mouse with dual displays.
CS1944- 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch
The CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch allows access to 4 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches amazing functionality combines a Dual view 4-port Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices.
CS72U- 2-Port USB KVM Switch
The CS72U 2-Port USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (keyboard and mouse, audio and VGA monitor). With the CS72U, you can access computers conveniently using port selection pushbuttons located on the unit’s front panel.
CS74U- 4-Port USB KVM Switch
The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor). With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit’s front panel.
CS1782A- 2-Port USB DVI Dual Link KVMP™ Switch
The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support.
CS1784A- 4-Port USB DVI Dual Link KVMP™ Switch
The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support.
CS82U- 2-Port PS/2-USB KVM Switch
The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
CS84U- 4-Port PS/2-USB KVM Switch
The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
CM0264- 2x4 DVI-HD Audio/Video Matrix KVMP™ Switch
Control Two DVI Computers and Two HD Computers/Devices from One Dual Display Console
CS1762A- USB 2.0 DVI KVMP™ Switch
The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
CS1764A- USB 2.0 DVI KVMP™ Switch
The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
CS1792- 2-Port USB 2.0 HDMI KVMP™ Switch
With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.
CS1794- 4-Port USB 2.0 HDMI KVMP™ Switch
With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.
CS1732B- 2-Port USB 2.0 KVMP™ Switch with OSD
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
CS1734B- 4-Port USB 2.0 KVMP™ Switch with OSD
The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
CS1774- 4-Port USB 2.0 KVME™ Switch
CS1774 is a multi-computer KVM Switch with built-in 3-in-1 (KVM Switch, USB 2.0 and Ethernet) function. It can simultaneously control 4 servers via a set of USB keyboard, mouse, and monitor. Moreover, the built-in USB and Ethernet Switch ports can rapidly access USB peripheral devices and share Internet resources at ease.
CS1742- 2-Port USB VGA Dual Display/Audio KVMP™ Switch
CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse.
CM1164- 4-Port USB DVI Multi-View/Audio KVMP™ Switch
To improve the operational efficiency of intensive monitoring applications, there needs to be a fast and convenient way to view and manage more computers simultaneously, permitting faster response times from a single location.
CS1732A- 2-Port PS/2-USB VGA/Audio KVMP™ Switch
CS1732A 2 Port KVM Switch has built-in USB on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease.
CS1734A- 4-Port PS/2-USB VGA/Audio KVMP™ Switch
CS1734A KVM Switch has built-in USB on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease.
CS102U- 2-Port USB VGA KVMP™ Switch
CS102U is a KVM Switch with built-in USB. It can control 2 servers via a single console and allows servers to share 2 peripheral devices via the USB ports on the rear panel.

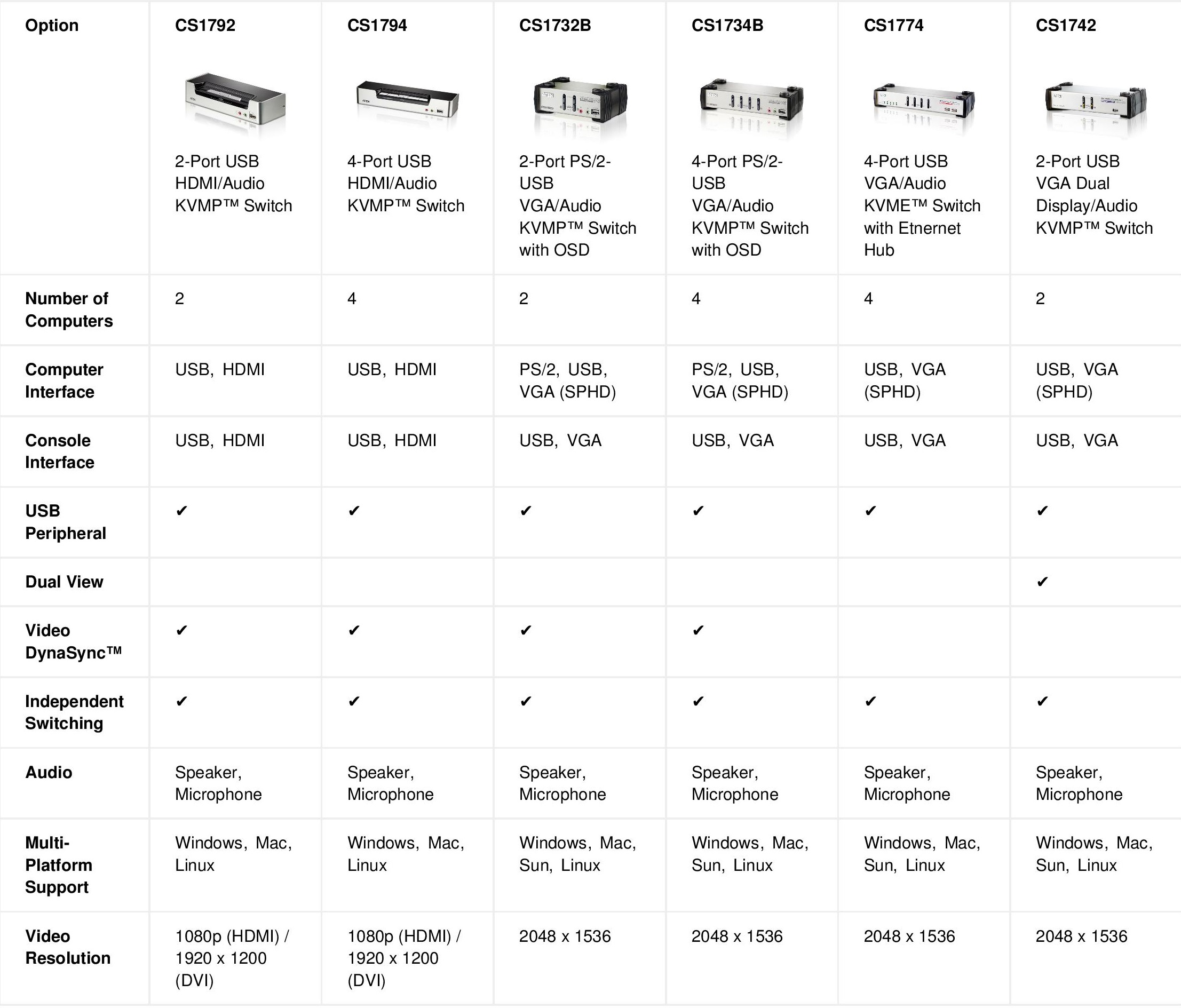

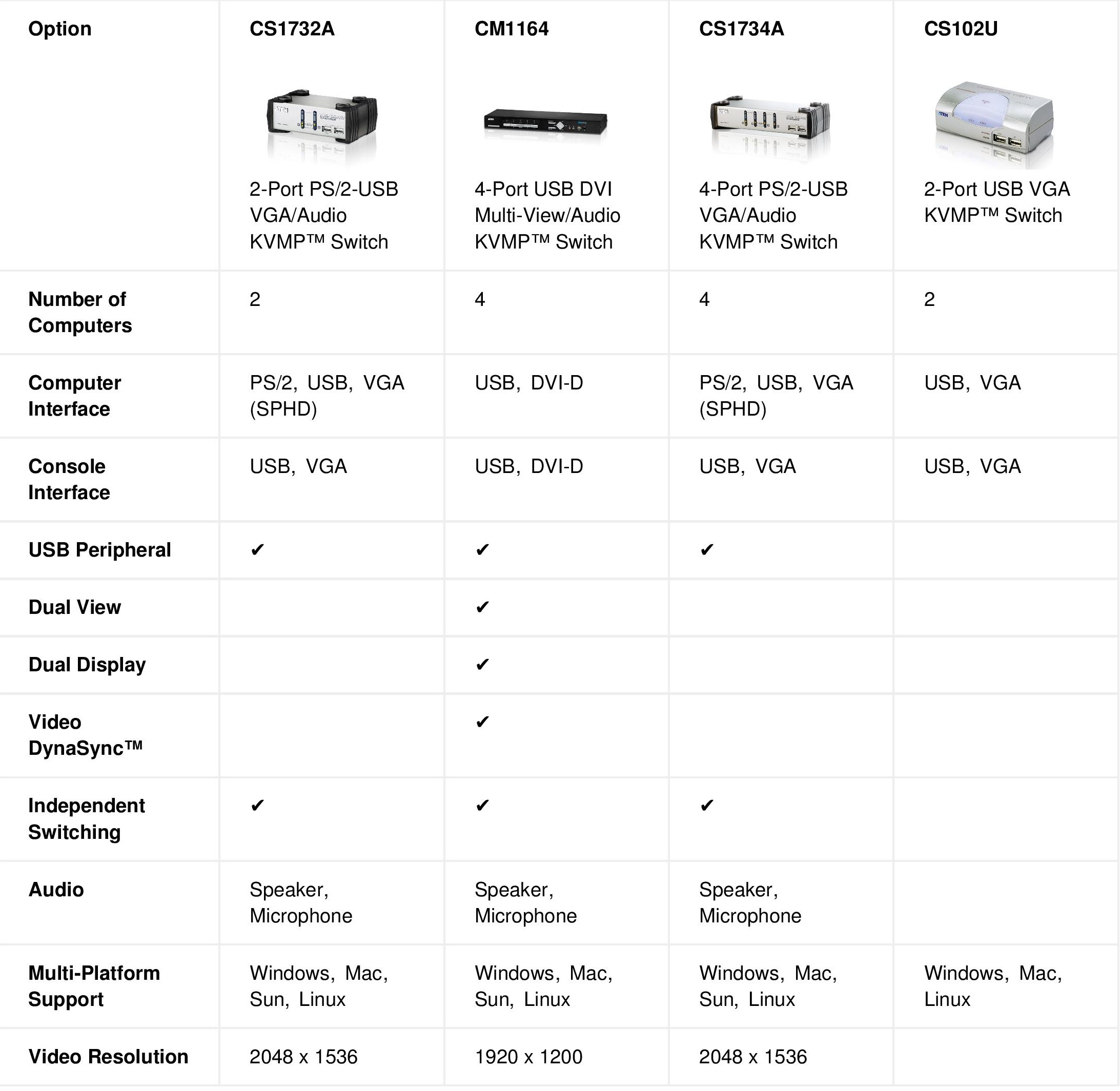

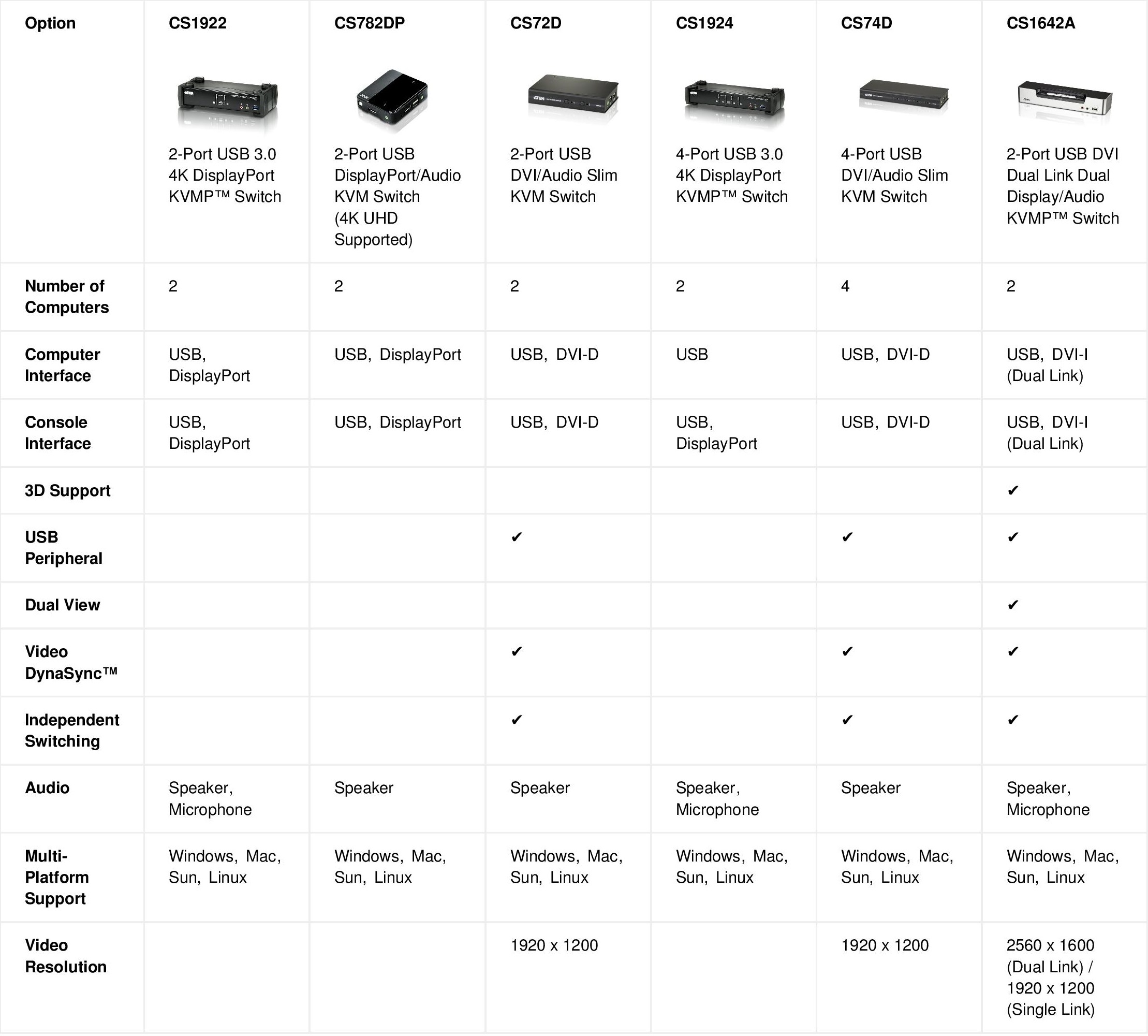

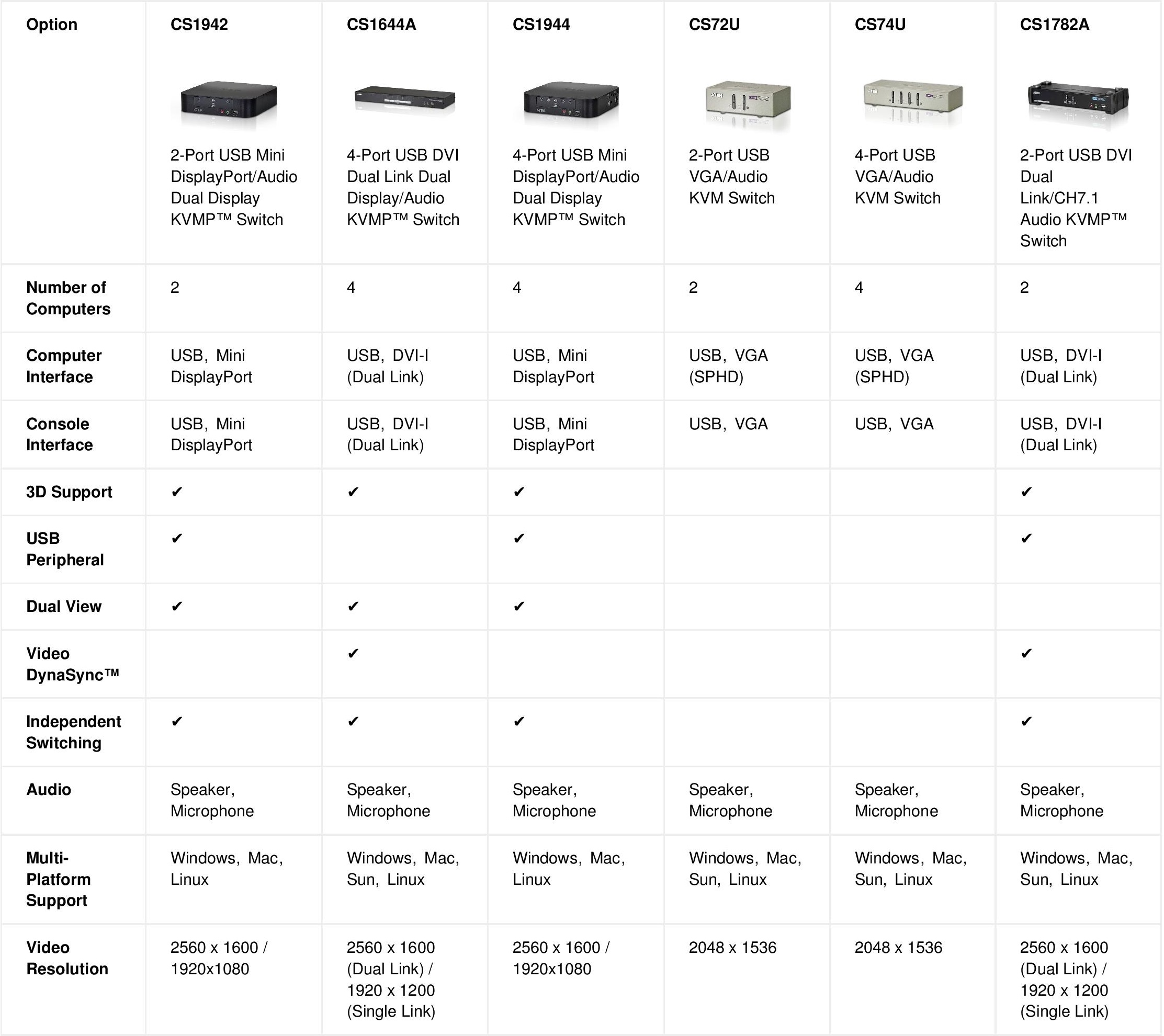

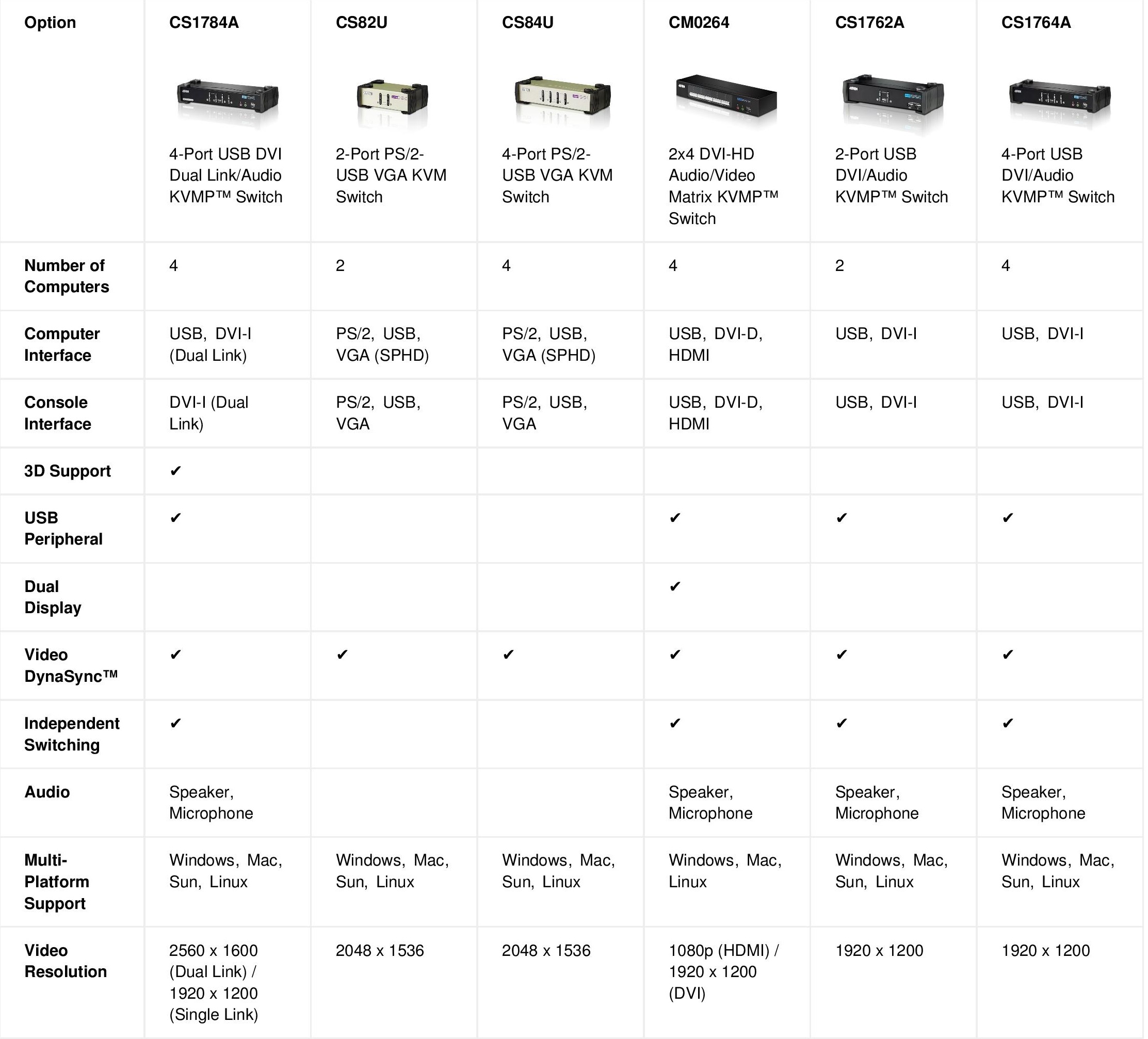

Comparison Charts;
